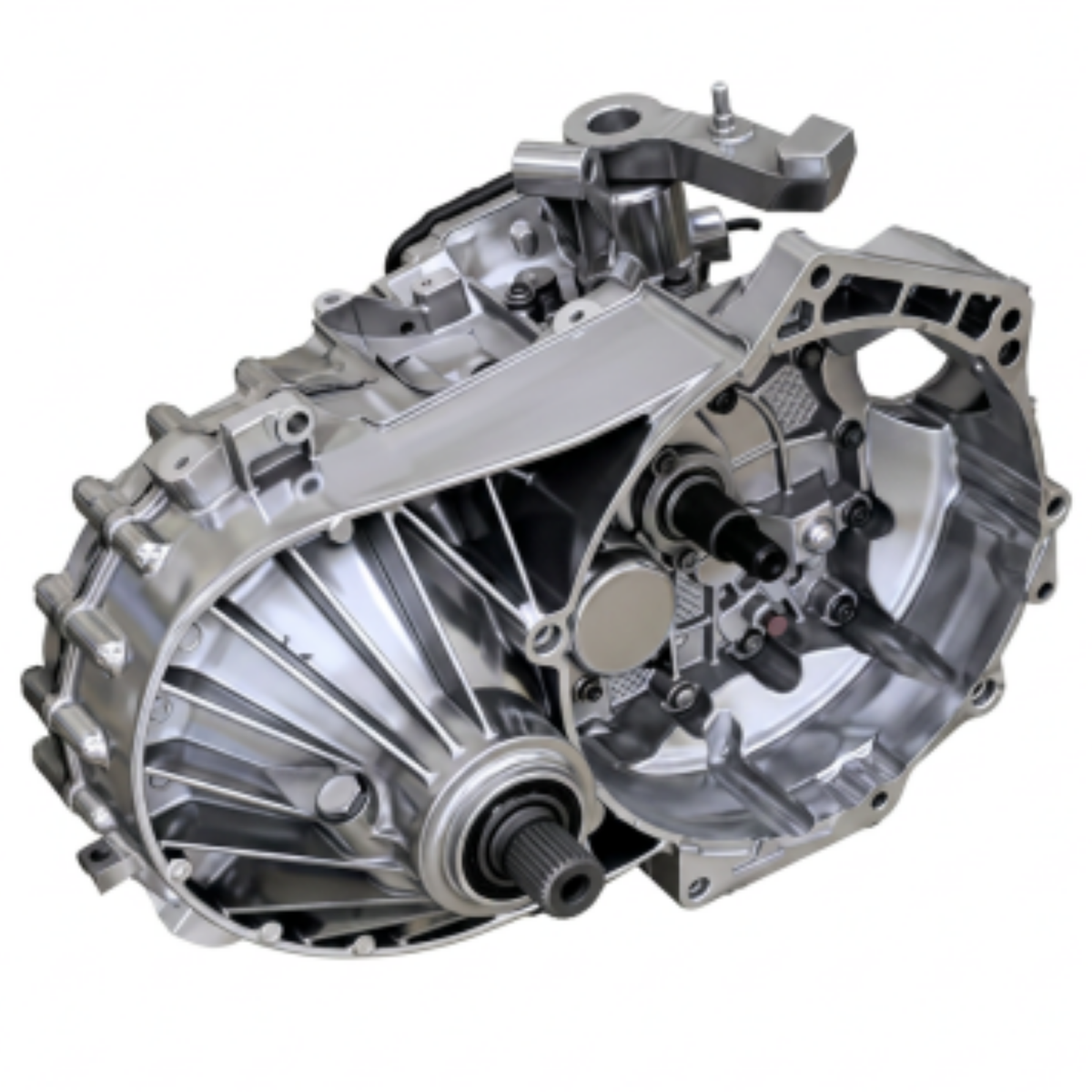

The Volkswagen 02Z is a 5-speed manual transmission developed for transverse front-wheel-drive commercial vehicle applications. Based on the earlier 02J design, it incorporates a strengthened reverse gear and larger differential to handle up to approximately 250 Nm.
Specification: 5-speed manual • VW/VAG 02Z • Transverse installation • Front-wheel drive • Cable-operated gear selection • Hydraulic clutch operation • Synchronised forward gears • Reinforced reverse gear • Integrated differential • Approximately 250 Nm maximum torque • Approximate oil capacity 2.0 litres • Multiple gear-ratio and final-drive configurations.
The 02Z is fitted primarily to Volkswagen Transporter T5/T6, Caravelle, Multivan and California applications with four-cylinder engines. Ratios and components vary by gearbox code, so the VIN, complete gearbox code and individual component identification should always be confirmed before ordering replacement parts.
Common Faults
Common 02Z problems include input/output shaft bearing wear, 5th-gear wear, synchroniser wear, differential wear and oil leaks. Symptoms can include gearbox whine or humming, difficult gear changes, excessive play and jumping out of gear.
Diagnosis should include oil level and condition, shaft bearings, gears, synchronisers, differential and clutch operation before the gearbox is dismantled.
