C514.5
C514.5

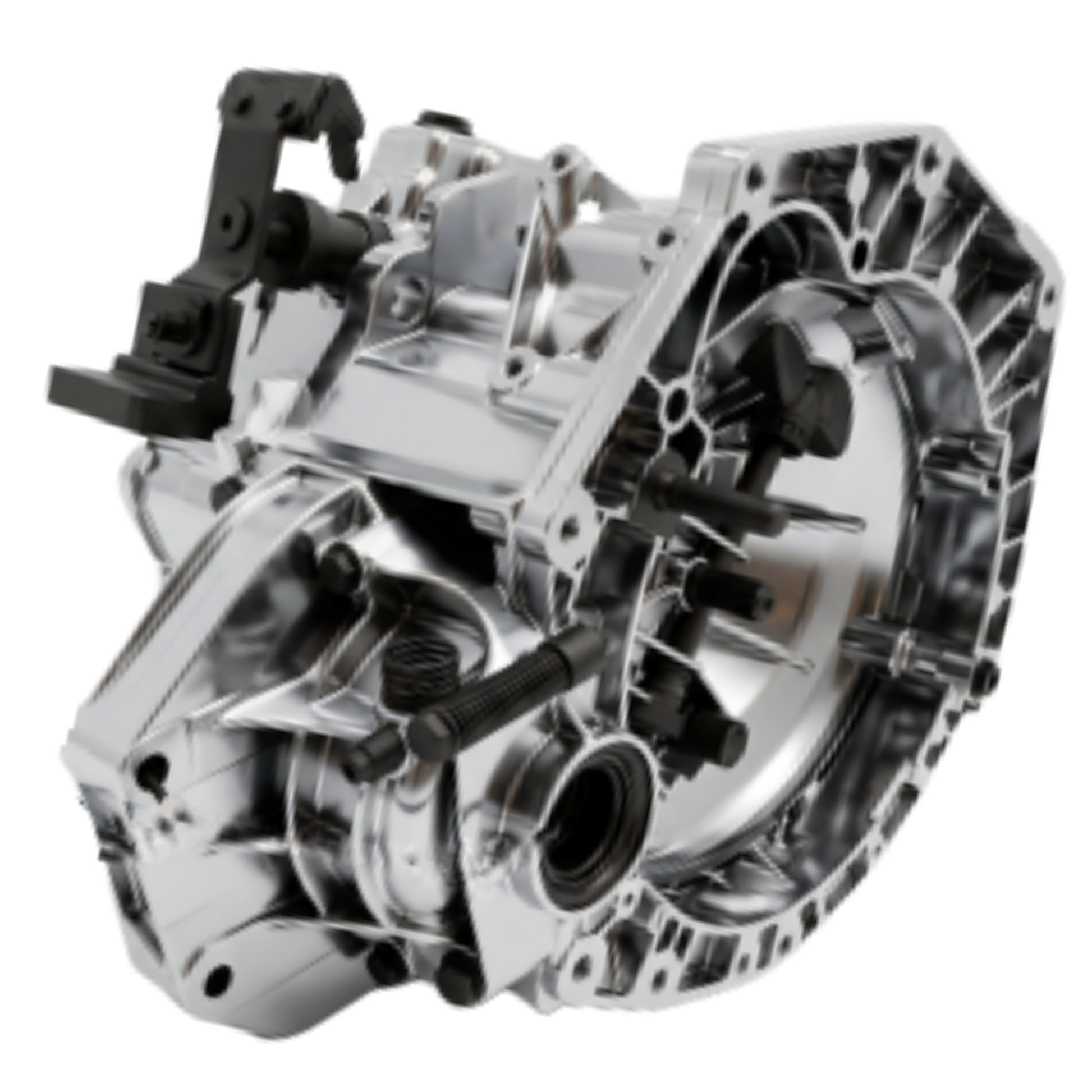

The Fiat C514.5 is a compact 5-speed manual transmission developed for transverse front-wheel-drive applications. It is the 5-speed version of the C514 gearbox family and uses a conventional two-shaft design with an integrated differential.
Specification: 5-speed manual • Fiat C514.5 • C514 family • Transverse installation • Front-wheel drive • Two-shaft design • Cable-operated gear selection • Hydraulic clutch operation on applicable versions • Synchronised forward gears • Integrated differential • Approximately 147 Nm maximum torque on documented versions • Multiple application-specific ratios and configurations.
The C514.5 is fitted across selected Fiat, Alfa Romeo, Lancia, Abarth, Chrysler and Ford applications, including 500, Panda, Punto, Grande Punto, Stilo, Doblo and Ypsilon. Ratios and components vary by application, so the VIN, complete gearbox code and individual component identification should always be confirmed before ordering replacement parts.
Common Faults
Common C514.5 problems include input-shaft bearing wear, synchroniser wear, differential bearing wear, selector problems and oil leaks. Symptoms can include gearbox whine or grinding, difficult gear changes, excessive drivetrain noise and jumping out of gear.
Diagnosis should include oil level and condition, input/output shaft bearings, differential bearings, synchronisers, selector components and clutch operation before the gearbox is dismantled.
Component parts sold separately listed below
Core units listed via the button above
