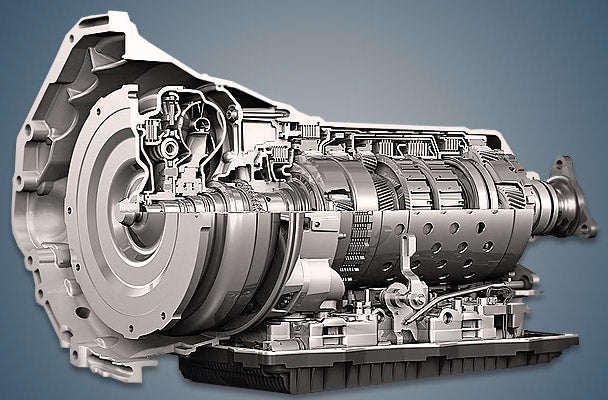

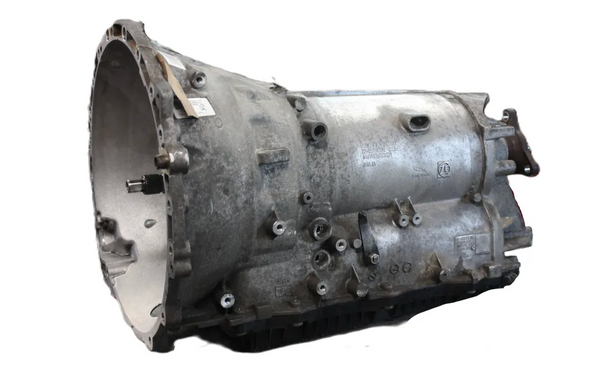

The ZF 8HP45 and 8HP45X are 8-speed electronically controlled automatic transmissions developed for longitudinal-engine applications. Part of the first-generation ZF 8HP family, the 8HP45 uses a hydrodynamic torque converter with lock-up clutch, four planetary gearsets and five shift elements to provide eight forward ratios. It is rated for approximately 450 Nm of input torque and combines a 4.70:1 first gear with a 0.67:1 eighth gear, providing an overall ratio spread of approximately 7.05:1.
Specification: 8-speed automatic • ZF 8HP45 / 8HP45X • BMW GA8HP45Z on applicable vehicles • Longitudinal installation • Rear-wheel-drive and all-wheel-drive applications • Torque converter with lock-up clutch • Four planetary gearsets • Five shift elements • Three multi-plate clutches and two brakes • Integrated electro-hydraulic mechatronic control • Adaptive shift control • 4.70:1 first gear • 0.67:1 eighth gear • Approximately 7.05:1 ratio spread • Maximum input torque approximately 450 Nm • ZF LifeguardFluid 8 on applicable versions.
The 8HP45 family is used across selected BMW, Chrysler, Dodge, Jeep, Jaguar and Land Rover applications, with the 8HP45X identifying AWD-compatible versions in applicable installations. ZF lists 8HP45, 8HP45X and application-specific HIS/XHIS variants. Components vary by manufacturer, drivetrain and production date, so the VIN, complete transmission number and individual component identification should always be confirmed before ordering replacement parts.
Common Faults
Common 8HP45 / 8HP45X problems include valve-body and mechatronic faults, hydraulic pressure or solenoid problems, torque-converter lock-up wear, adaptation/software issues and internal clutch wear. Symptoms can include harsh or delayed shifts, shift flare, slipping, converter judder, incorrect or missing gears, transmission warnings and failsafe operation.
The transmission relies on precise hydraulic pressure, clutch filling and adaptation control, so fluid loss, valve-body wear or adaptation problems can produce significant shift-quality issues without necessarily indicating major internal failure. Diagnosis should include fault codes, adaptations, fluid condition and hydraulic operation before internal components are replaced.
Common Fault Codes
| Fault Code | Description |
|---|---|
| P0700 | Transmission control system fault / additional TCM faults stored |
| P0711 | Transmission fluid temperature sensor range / performance fault |
| P0715 | Input / turbine speed sensor circuit fault |
| P0716 | Input / turbine speed sensor range / performance fault |
| P0720 | Output speed sensor circuit fault |
| P0721 | Output speed sensor range / performance fault |
| P0730 | Incorrect transmission gear ratio |
| P0731 | Incorrect 1st gear ratio |
| P0732 | Incorrect 2nd gear ratio |
| P0733 | Incorrect 3rd gear ratio |
| P0734 | Incorrect 4th gear ratio |
| P0741 | Torque converter clutch performance / lock-up fault |
| P0742 | Torque converter clutch stuck on |
| P0868 | Transmission fluid / line pressure too low |
| U0101 | Lost communication with transmission control module |
