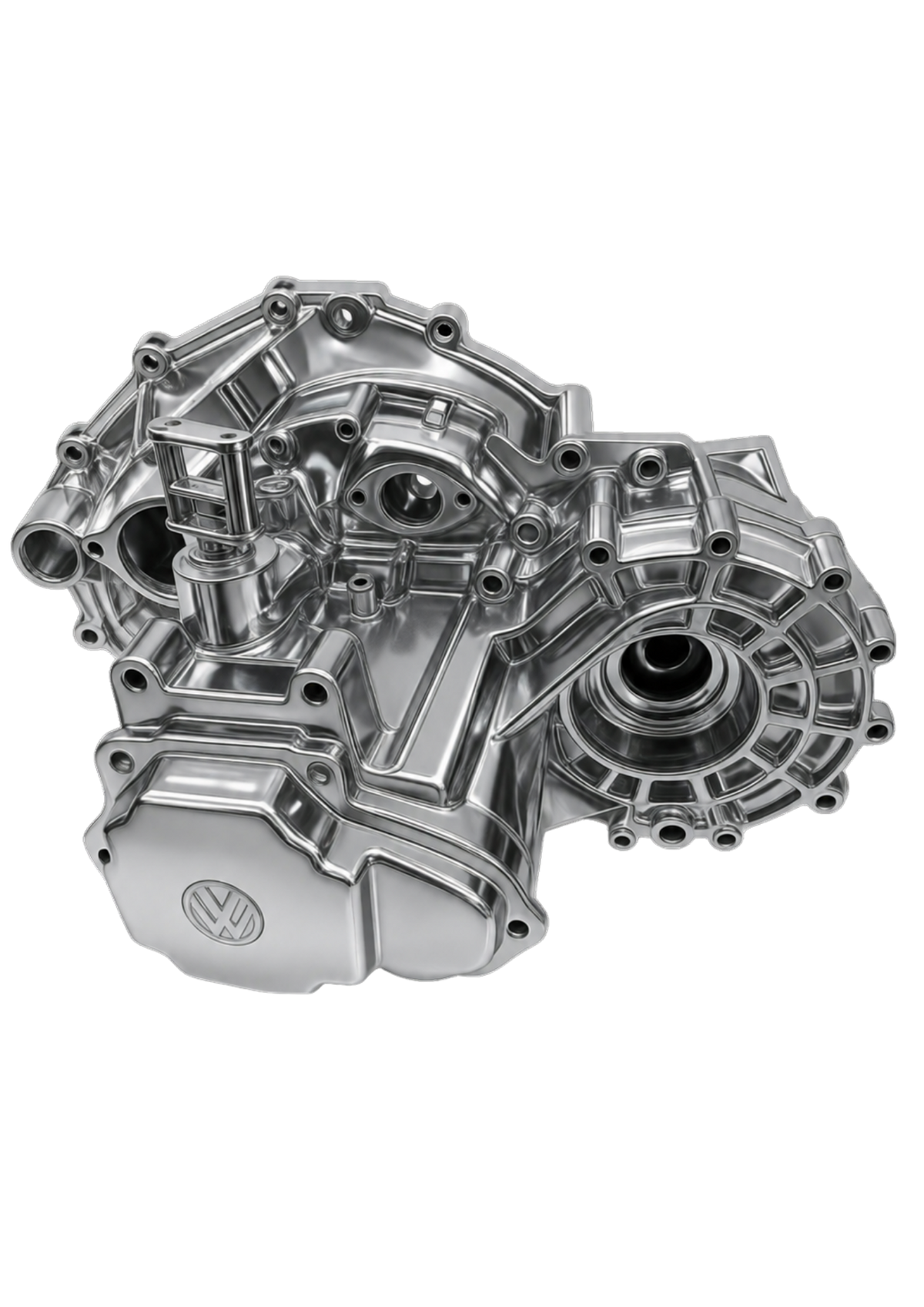

The Volkswagen 02B is a 5-speed manual transaxle primarily used in the VW Transporter T4 (1990–2003). Developed from the 02A transmission family, it uses a stronger final-drive arrangement and heavier-duty internal components to cope with the greater vehicle weight and load demands of the Transporter.
Specification: 5-speed manual • Front-wheel drive • Transverse layout • Mechanical rod-operated gear selection • Integrated differential • Cable or hydraulic clutch operation depending on application • Multiple gear and final-drive ratio configurations.
Commonly fitted to selected 1.9, 2.0, 2.4 and 2.5 litre VW Transporter T4 petrol and diesel models. Numerous gearbox codes and ratio variants were produced, so the individual gearbox code should always be confirmed before ordering replacement parts.
Common Faults & Diagnostic Symptoms
Unlike an electronically controlled automatic, DSG or CVT transmission, the 02B is a conventional manual gearbox and does not have a dedicated transmission control module or a standard set of gearbox-specific diagnostic trouble codes. Mechanical faults are therefore normally identified through symptoms, inspection and gearbox strip-down rather than transmission DTCs.
| Common Fault / Symptom | Typical Area to Inspect |
|---|---|
| Gearbox oil leaking from driveshaft area | Driveshaft flange oil seals and flange sealing surfaces |
| Whining or rumbling while driving | Input/output shaft bearings and differential bearings |
| Noise that changes with road speed | Final-drive gears, differential bearings or shaft bearings |
| Crunching during gear changes | Worn synchroniser rings, hubs/sleeves or gear engagement components |
| Difficult 1st or 2nd gear engagement | Synchronisers, selector mechanism or incomplete clutch disengagement |
| Difficult or noisy 5th-gear operation | 5th-gear pair, synchroniser components and associated bearings |
| Gear selection stiff or imprecise | External selector rods, bushes, linkage adjustment and selector mechanism |
| Gear jumps out under load | Selector fork, hub/sleeve or worn gear engagement teeth |
| Differential noise or excessive play | Differential bearings, crown wheel and final-drive assembly |
| Clutch does not disengage correctly | Hydraulic system or self-adjusting cable, release mechanism and clutch assembly |
Diagnostic Note: Vehicle diagnostic systems may record faults associated with the clutch switch, engine management, vehicle-speed information or other drivetrain electronics. These should not be presented as 02B gearbox fault codes because they are generated by other vehicle control modules.
