PF6
PF6

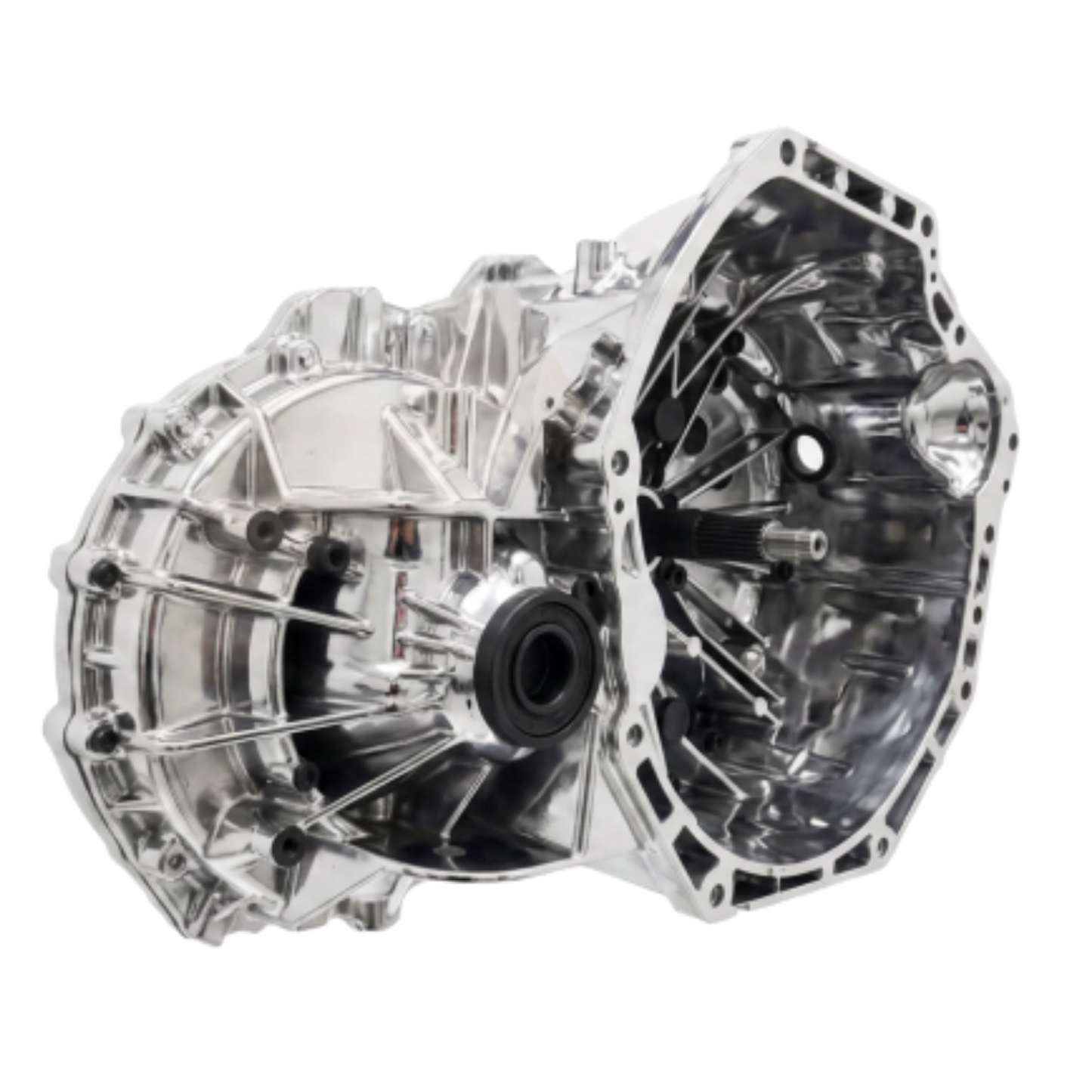

The Renault PF6 is a heavy-duty 6-speed manual transmission developed for transverse front-wheel-drive light-commercial applications. Closely related to the earlier PK6 family, it uses a three-shaft design with an integrated differential and is designed for the higher loads associated with vans and commercial vehicles.
Specification: 6-speed manual • Renault PF6 • Transverse installation • Front-wheel drive • Three-shaft design • Cable-operated gear selection • Hydraulic clutch operation • Synchronised forward gears • Integrated differential • Heavy-duty commercial vehicle application • Multiple gear-ratio and final-drive configurations.
The PF6 is fitted across selected Renault, Vauxhall/Opel, Nissan and Fiat commercial vehicles, including Trafic, Master, Vivaro, Movano, Primastar, NV300, NV400 and Talento. Numerous PF6 suffixes exist, so the VIN, complete gearbox code and individual component identification should always be confirmed before ordering replacement parts.
Common Faults
Common PF6 problems include shaft-bearing failure, synchroniser and gear wear, differential damage and 5th/6th-gear wear. Typical symptoms include humming or whining while driving, pronounced 6th-gear whine, difficult 2nd/3rd/4th selection, crunching and eventual loss of drive if bearing failure becomes severe.
Diagnosis should include oil level and condition, shaft bearings, gear teeth, synchronisers, differential, selector components and clutch operation before the gearbox is dismantled.
Component parts sold separately listed below
Core units listed via the button above
The Renault PF6 is a heavy-duty 6-speed manual transmission developed for transverse front-wheel-drive light-commercial applications. Closely related to the earlier PK6 family, it uses a three-shaft design with an integrated differential and is designed for the higher loads associated with vans and commercial vehicles.
Specification: 6-speed manual • Renault PF6 • Transverse installation • Front-wheel drive • Three-shaft design • Cable-operated gear selection • Hydraulic clutch operation • Synchronised forward gears • Integrated differential • Heavy-duty commercial vehicle application • Multiple gear-ratio and final-drive configurations.
The PF6 is fitted across selected Renault, Vauxhall/Opel, Nissan and Fiat commercial vehicles, including Trafic, Master, Vivaro, Movano, Primastar, NV300, NV400 and Talento. Numerous PF6 suffixes exist, so the VIN, complete gearbox code and individual component identification should always be confirmed before ordering replacement parts.
Common Faults
Common PF6 problems include shaft-bearing failure, synchroniser and gear wear, differential damage and 5th/6th-gear wear. Typical symptoms include humming or whining while driving, pronounced 6th-gear whine, difficult 2nd/3rd/4th selection, crunching and eventual loss of drive if bearing failure becomes severe.
Diagnosis should include oil level and condition, shaft bearings, gear teeth, synchronisers, differential, selector components and clutch operation before the gearbox is dismantled.
