0BH, 0BT, DQ500 Direct Shift Gearbox (DSG)
0BH, 0BT, DQ500 Direct Shift Gearbox (DSG)

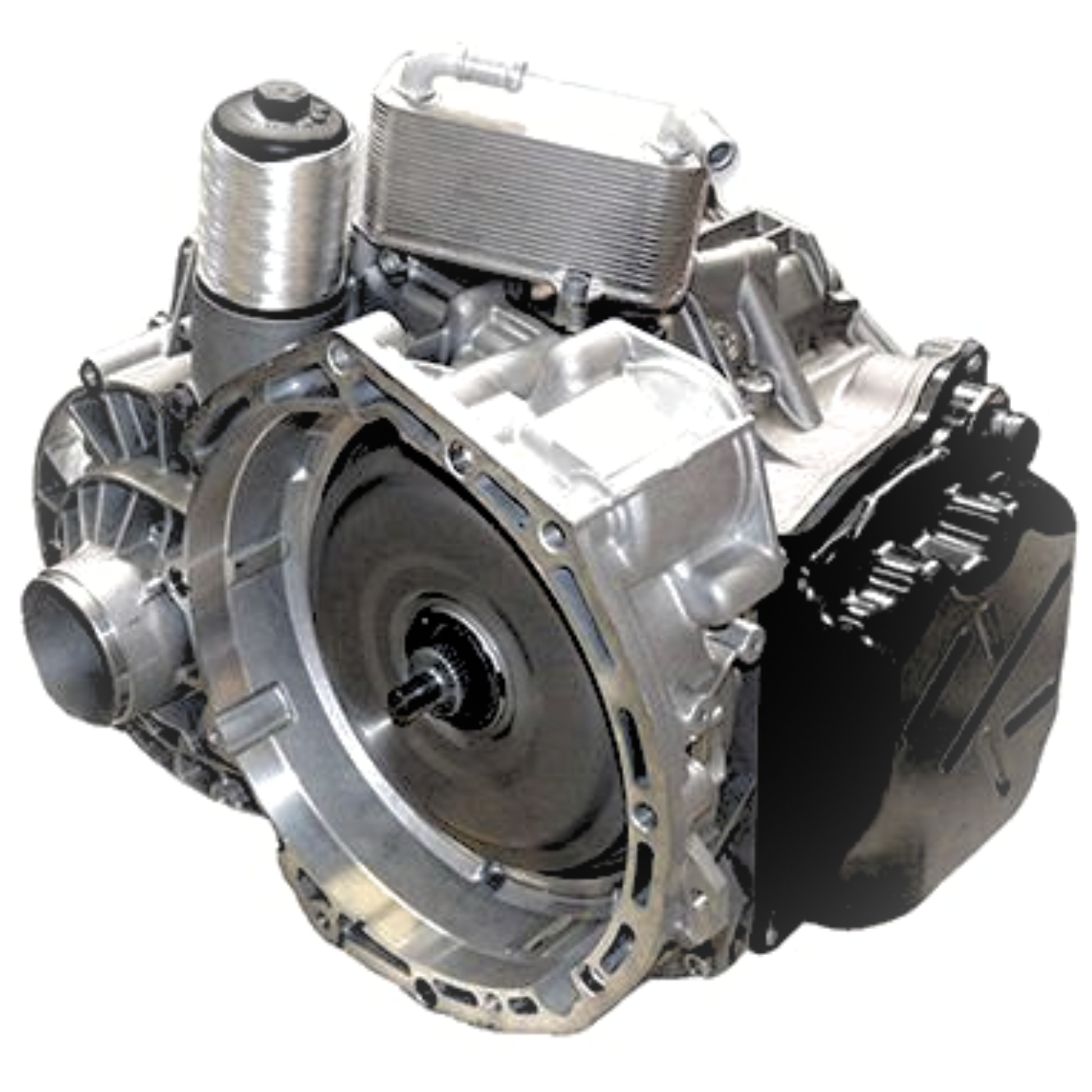

The Volkswagen Group 0BH and 0BT are designations of the DQ500, a heavy-duty 7-speed wet dual-clutch transmission (DSG) developed for transverse-engine vehicles with higher torque requirements. It uses two oil-cooled multi-plate clutches and an electro-hydraulic mechatronic system to control clutch operation and gear selection. The DQ500 was introduced in the Volkswagen Transporter T5, with the 0BH version subsequently used in passenger-car and performance applications. Ross-Tech specifically identifies 0BH/0BT as DQ500 7-speed DSG transmissions.
Specification: 7-speed dual-clutch transmission • DQ500 family • 0BH / 0BT designations • Wet multi-plate dual clutch • Up to approx. 600 Nm torque capacity depending on variant/application • Transverse installation • Front-wheel-drive and all-wheel-drive applications • Two transmission sections/input shafts • Electro-hydraulic mechatronic control • Integrated differential • Electronic clutch and gear selection.
Commonly fitted to higher-torque Volkswagen Group vehicles including selected VW Transporter T5/T6, Tiguan and other performance applications, together with Audi Q3, RS3 and TT RS models. The 0BT and 0BH are both DQ500-family transmissions, but individual versions, ratios, final drives, mechatronics and drivetrain configurations differ. The complete gearbox code, vehicle application and transmission/mechatronic part number should therefore always be confirmed before ordering replacement parts.
Common Faults
Common 0BH/0BT DQ500 problems include mechatronic electronic failure, clutch-position sensor faults, hydraulic pressure-control problems, solenoid/valve faults, clutch-control faults, input-speed sensor failures and gear-selector regulation faults. Typical symptoms include harsh or erratic shifting, failed or delayed Drive/Reverse engagement, gearbox malfunction warnings, transmission shudder, loss of odd or even gears and emergency/limp-home operation.
Common Fault Codes
|
Fault Code |
Description |
|
P1735 / P173500 |
Position sensor for clutch 1 – electrical fault |
|
P1736 / P173600 |
Position sensor for clutch 2 – electrical fault |
|
P0607 / P060700 |
Transmission control module – internal/performance malfunction |
|
P179C / P179C00 |
Main pressure valve – electrical fault |
|
P2716 / P271600 |
Pressure control valve 4 – electrical fault |
|
P175D / P175D00 |
Clutch 1 opens unintentionally |
|
P175E / P175E00 |
Clutch 1 closes unintentionally |
|
P176E / P176E00 |
Clutch 2 opens unintentionally |
|
P176F / P176F00 |
Clutch 2 closes unintentionally |
|
P0715 / P071500 |
Transmission input speed sensor 1 – electrical/no-function fault |
These codes are documented specifically against 0BH/0BT DQ500 mechatronic systems. P1735/P173500 and P1736/P173600 are particularly well-established faults involving the clutch-position sensing system and can result in the transmission disabling one of its two gear sets, leaving the vehicle operating with only odd or even gears
Component parts sold separately listed below
Core units listed via the button above
