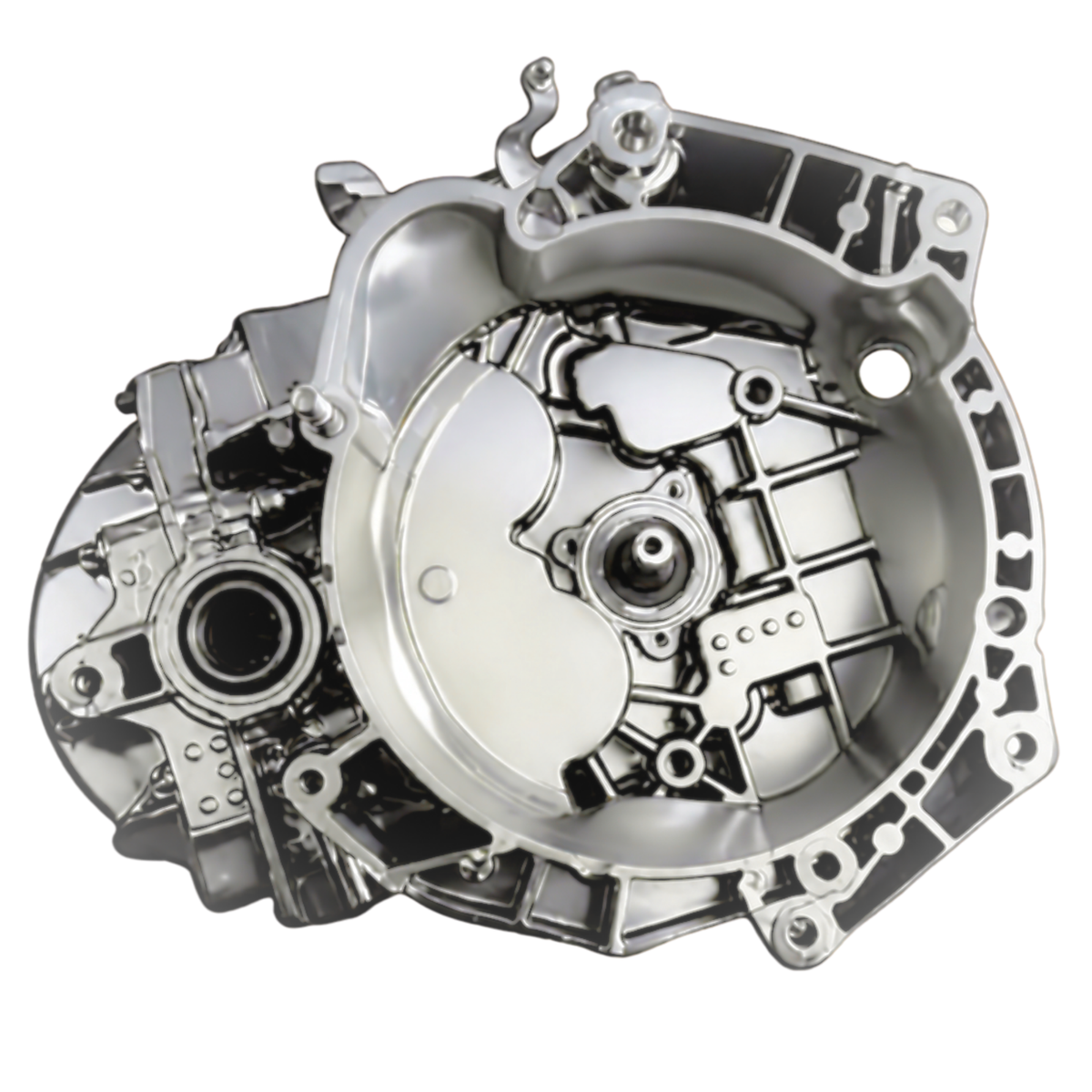

The GM/Vauxhall/Opel M32, also known as C544.6 within the Fiat Group, is a 6-speed manual transmission developed for transverse front-wheel-drive applications. It uses a compact three-shaft design with an integrated differential and is rated for a maximum input torque of approximately 320 Nm.
Specification: 6-speed manual • GM/Opel M32 / M32-6 • Fiat C544.6 • Transverse installation • Front-wheel drive • Three-shaft design • Cable-operated gear selection • Hydraulic clutch operation • Fully synchronised gears including reverse • Triple-cone synchronisation 1st/2nd • Double-cone 3rd/4th • Single-cone 5th/6th and reverse • Integrated differential • Approximately 320 Nm maximum torque • Dual-mass flywheel on applicable versions.
The M32 is fitted across selected Vauxhall/Opel, Alfa Romeo, Fiat, Lancia, Chevrolet and other GM/FCA applications, particularly turbocharged petrol and diesel models. Ratios and components vary by version and production date, so the VIN, complete gearbox code and individual component identification should always be confirmed before ordering replacement parts.
Common Faults
Common M32 problems include shaft-bearing wear, excessive bearing preload/play, synchroniser wear, selector problems and differential bearing wear. Symptoms can include gearbox whine or rumbling, particularly in higher gears, gear-lever movement under acceleration/deceleration, difficult gear changes and excessive drivetrain noise.
Diagnosis should include oil level and condition, shaft bearings and preload, synchronisers, selector components, differential, clutch and dual-mass flywheel operation before the gearbox is dismantled.
Component parts sold separately listed below
Core units listed via the button above
The GM/Vauxhall/Opel M32, also known as C544.6 within the Fiat Group, is a 6-speed manual transmission developed for transverse front-wheel-drive applications. It uses a compact three-shaft design with an integrated differential and is rated for a maximum input torque of approximately 320 Nm.
Specification: 6-speed manual • GM/Opel M32 / M32-6 • Fiat C544.6 • Transverse installation • Front-wheel drive • Three-shaft design • Cable-operated gear selection • Hydraulic clutch operation • Fully synchronised gears including reverse • Triple-cone synchronisation 1st/2nd • Double-cone 3rd/4th • Single-cone 5th/6th and reverse • Integrated differential • Approximately 320 Nm maximum torque • Dual-mass flywheel on applicable versions.
The M32 is fitted across selected Vauxhall/Opel, Alfa Romeo, Fiat, Lancia, Chevrolet and other GM/FCA applications, particularly turbocharged petrol and diesel models. Ratios and components vary by version and production date, so the VIN, complete gearbox code and individual component identification should always be confirmed before ordering replacement parts.
Common Faults
Common M32 problems include shaft-bearing wear, excessive bearing preload/play, synchroniser wear, selector problems and differential bearing wear. Symptoms can include gearbox whine or rumbling, particularly in higher gears, gear-lever movement under acceleration/deceleration, difficult gear changes and excessive drivetrain noise.
Diagnosis should include oil level and condition, shaft bearings and preload, synchronisers, selector components, differential, clutch and dual-mass flywheel operation before the gearbox is dismantled.
