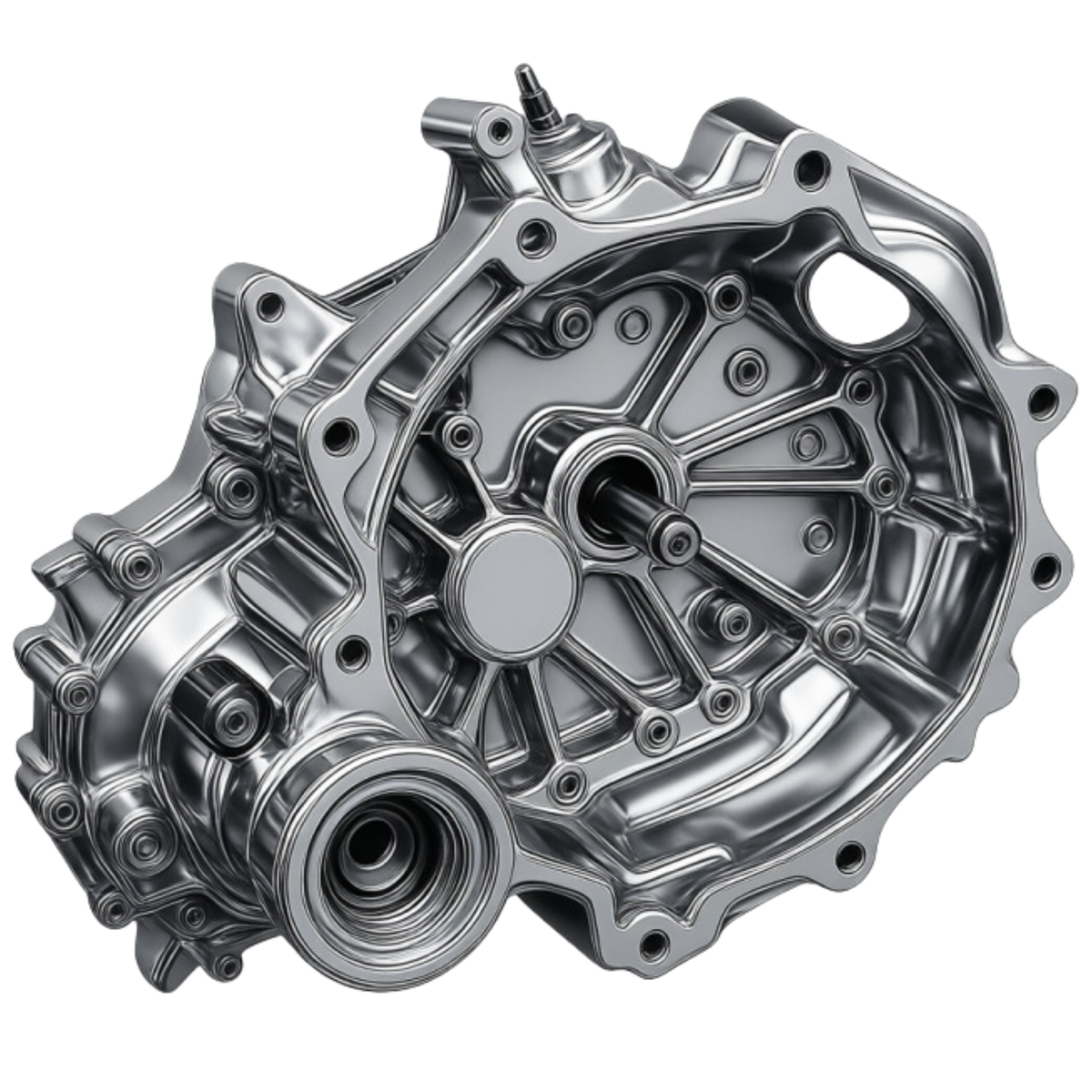

02T (MQ200)
02T (MQ200)
The Volkswagen 02T (MQ200) is a lightweight 5-speed manual transaxle developed for compact Volkswagen Group vehicles. Its magnesium casing and twin-shaft design reduce weight while providing a maximum torque capacity of 200 Nm. The transmission was used extensively across Volkswagen, Audi, SEAT and Škoda applications.
Specification: 5-speed manual • MQ200 family • Up to 200 Nm torque capacity • Front-wheel drive • Transverse layout • Twin-shaft design • Magnesium housing • Cable-operated gear selection • Hydraulic clutch operation • Double synchronisation on 1st and 2nd gears • Integrated differential.
Commonly fitted to smaller-engined Volkswagen Group vehicles including selected VW Polo, Golf, Bora, Lupo and New Beetle, Audi A1/A2/A3, Škoda Fabia, Octavia and Rapid, and SEAT Ibiza/Córdoba applications. Numerous gearbox codes, gear ratios and final-drive combinations were produced, so the individual gearbox code should always be confirmed before ordering replacement parts.
Common Faults & Diagnostic Symptoms
Unlike an electronically controlled automatic, DSG or CVT transmission, the 02T is a conventional manual gearbox and does not have a dedicated transmission control module or a standard set of gearbox-specific diagnostic trouble codes. Mechanical faults are therefore normally identified through symptoms, inspection and gearbox strip-down rather than transmission DTCs.
| Common Fault / Symptom | Typical Area to Inspect |
|---|---|
| Rattling, whirring or grinding while driving | Twin-bearing carrier / input and output shaft bearings |
| Rattling as transmission speed falls | Twin-bearing mounting plate assembly |
| Difficult or impossible 5th-gear engagement | 5th-gear needle bearing/cage and associated bearing damage |
| Excessive heat around 5th gear | Worn twin-bearing assembly or insufficient lubrication |
| Crunching during gear changes | Synchroniser rings, hubs/sleeves and gear engagement components |
| Difficult 1st or 2nd gear engagement | Double synchroniser assemblies, clutch operation or selector adjustment |
| Gear selection difficult or imprecise | Selector cables, cable adjustment or internal selector mechanism |
| Differential noise or excessive play | Differential tapered roller bearings and final-drive components |
| Gearbox oil leakage | Flange shaft oil seals, input shaft area or gearbox casing joints |
| General internal noise / gear wear | Shaft bearings, needle bearings, gears and lubrication condition |
Diagnostic Note: Vehicle diagnostic systems may record faults relating to the clutch switch, engine speed information, vehicle-speed signals or other drivetrain electronics. These should not be presented as 02T gearbox fault codes because they are generated by other vehicle control modules.
Component parts sold separately listed below
Core units listed via the button above
